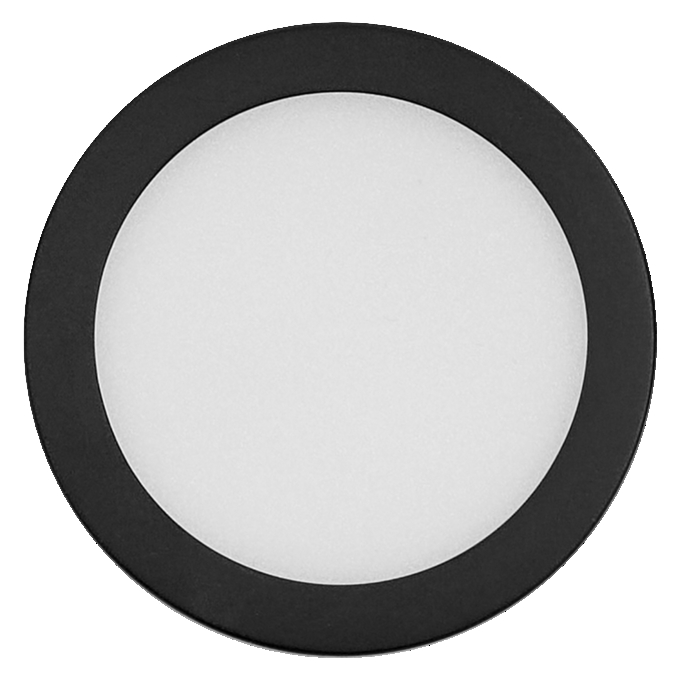

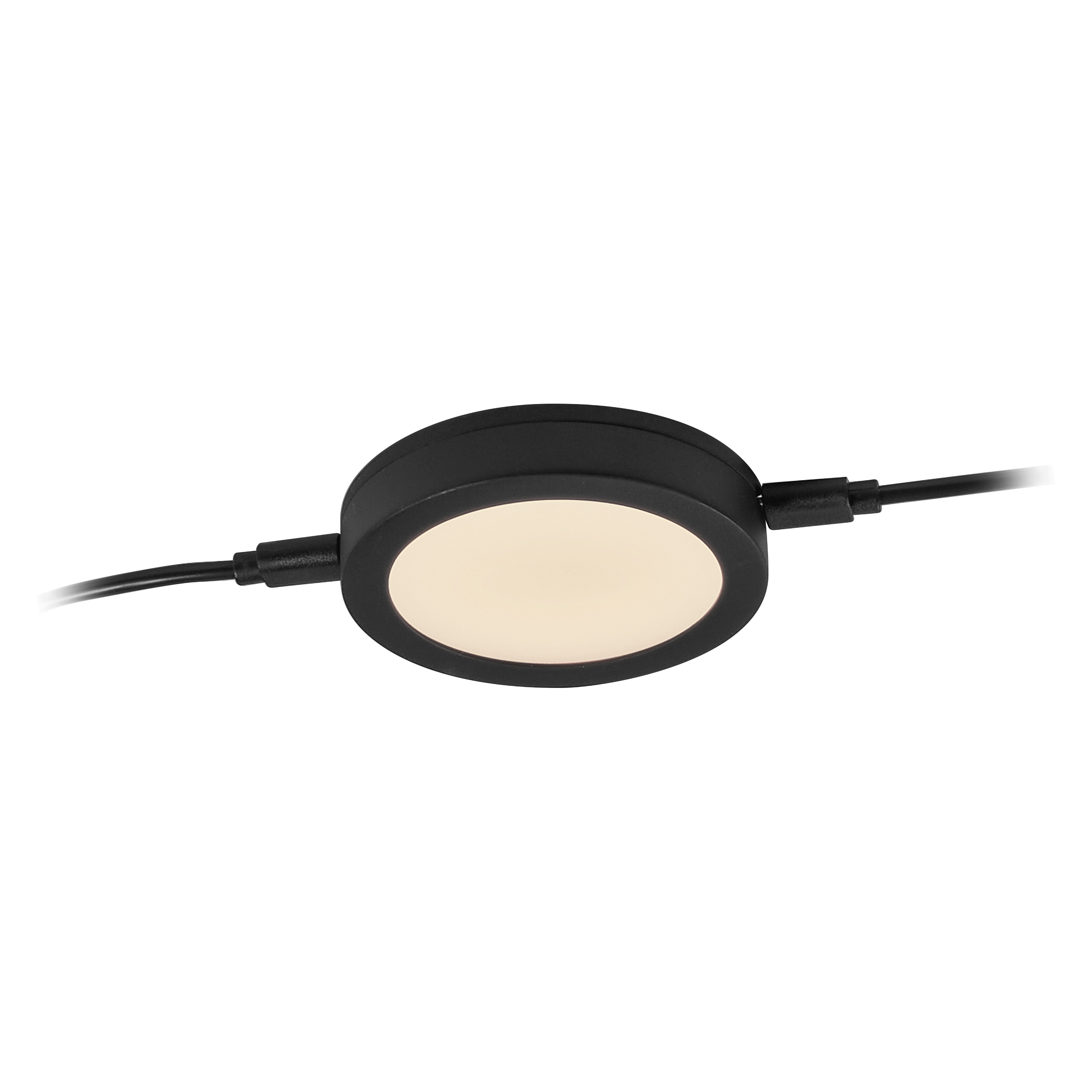

Undercabinet Flexus Spot 9.8W CCT DIM Black

Coming soon

GTIN: 4099854627989 Folding box / 1 Show all packages

Easy and quick series connection thanks to simple plug system
Connection of up to 4 luminaires in a row via enclosed connector cable, also in combination with Flexus Linear
Highly versatile due to selectable color

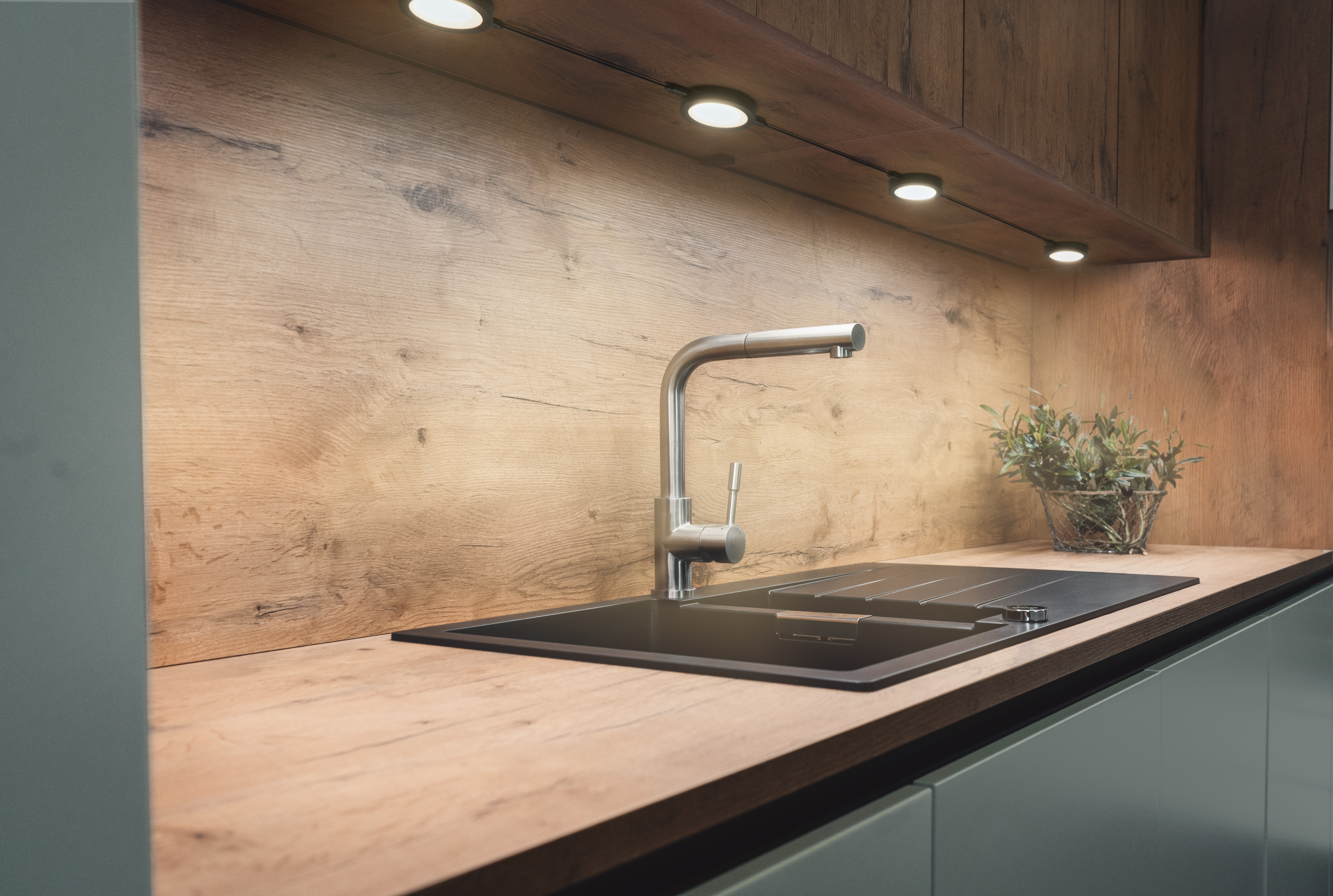

Spotlights for Undercabinet illumination
Color temperature adjustable in three steps
Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
Stepless dimming by covering the infrared motion sensor for at least one second
Easy and fast mounting on nearly every surface (adhesive tape)
Lifetime up to 30,000 h

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.

Nominal wattage	9.80 W
Nominal voltage	220…240 V
Nominal current	73 mA
Inrush current	0.073 A
Inrush current time T_h50	132 µs
Max. number of luminaires per miniature circuit breaker B16	28
Max. number of luminaires per miniature circuit breaker C16	36
Power factor λ	≥0.5
Total harmonic distortion	≤ 140 %
Protection class	II
Operating mode	Mains voltage

Luminous flux	580 lm
Total luminous flux of contained light sources	780 lm
Luminous efficacy	59 lm/W
Color temperature	2700 K / 4000 K / 5000 K
Light color (designation)	Warm White, Cool White, Cool Daylight
Color rendering index Ra	> 80
Standard deviation of color matching	6 sdcm
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG0

Product color	Black
Housing color	Black
Body material	Acrylonitrile butadiene styrene (ABS)
Cover material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Lifespan L70/B50 at 25 °C

30000 h ¹⁾

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Type of sensor	Infrared sensor
Sensor technology	Infrared/Photocell

Type of emergency operation test

None

Standards	CE
Luminaire with limited surface temperature, "D sign"	No
Replaceable light source (EPREL)	Not replaceable

Product remark

Available from January 2026

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
